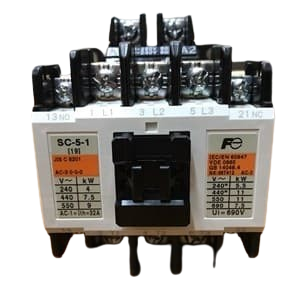

Seri SC-5-1
FUJI MAGNETIC CONTACTOR
SC-5-1
- The SC series is a range of long service-life and high-performance contactors. SC-03 to SC-N3 smallframe contactors provide snap-on fitting of numerous optional units, such as auxiliary contact blocks, coil surge suppressors, and operation counters. Field modifications are quick and easy.
Specification
| Model Number | SC-5-1 |
|---|---|
| Unit | 1 |
| Thermal Current (A) | 32.00 |
| Operation | 1800 Cycles/Hour |
| Coil Operating Voltage and Frequenzy | 200V at 50Hz, 200-220V at 60Hz (AC) |
| Power Consumption | 95 VA (Inrush) and 9 VA (Sealed) |
| Motor Capacity AC3 | 5.5kW at 220-240V, 11kW at 380-440V, 11kW at 500-550V, 7.5kW at 600-660V |
| Berat (Kg) | 0.3 kg |
